Wrapper over the core::Map class that is directly usable in a bl::gui::GUI. More...

#include <EditMap.hpp>

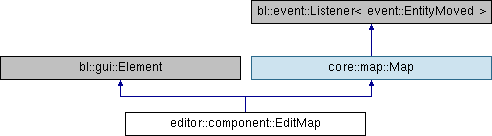

Inheritance diagram for editor::component::EditMap:

Classes
class	AddCatchRegionAction

class	AddEventAction

class	AddNpcSpawnAction

class	AddOrEditItemAction

class	AddSpawnAction

class	AddTownAction

class	AppendLayerAction

class	AppendLevelAction

class	EditCatchRegionAction

class	EditEventAction

class	EditNpcSpawnAction

class	EditTownAction

class	FillCatchAction

class	FillCollisionAction

class	FillTileAction

class	FillTownTileAction

class	RemoveCatchRegionAction

class	RemoveEventAction

class	RemoveItemAction

class	RemoveLayerAction

class	RemoveLightAction

class	RemoveNpcSpawnAction

class	RemoveSpawnAction

class	RemoveTownAction

class	RotateSpawnAction

class	SetAmbientLightAction

class	SetCatchAction

class	SetCatchAreaAction

class	SetCollisionAction

class	SetCollisionAreaAction

class	SetLevelTileAction

class	SetLevelTileAreaAction

class	SetLightAction

class	SetNameAction

class	SetPlaylistAction

class	SetScriptAction

class	SetTileAction

class	SetTileAreaAction

class	SetTownTileAction

class	SetTownTileAreaAction

class	SetWeatherAction

class	ShiftLayerAction

class	ShiftLevelAction

Public Types
enum class	RenderOverlay { None , Collisions , CatchTiles , Towns , Events , Spawns , LevelTransitions }
	Optional render overlays depending on editor state. More...

typedef std::shared_ptr< EditMap >	Ptr
	Pointer to an EditMap. More...

using	PositionCb = std::function< void(const sf::Vector2f &pixels, const sf::Vector2i &tiles)>
	Called when the map is clicked. More...

using	ActionCb = std::function< void()>
	Called on various event types. More...

Public Member Functions
virtual	~EditMap ()
	Destroy the Edit Map object. More...

bool	unsavedChanges () const
	Returns whether or not the map has been updated since last being saved. More...

const std::string &	currentFile () const
	Returns the current file the map is saving to. More...

void	newMap (const std::string &filename, const std::string &name, const std::string &tileset, unsigned int width, unsigned int height)
	Clears the current map and creates a new map with the given parameters. More...

bool	editorLoad (const std::string &filename)
	Loads the map contents from the given file. More...

bool	editorSave ()
	Saves the map to the file it was loaded from or created with. More...

const char *	undoDescription () const
	Returns the description of what action will be undone if undo is called. More...

void	undo ()
	Undoes the previous action in the edit history. More...

const char *	redoDescription () const
	Returns the description of what action will be redone if redo is called. More...

void	redo ()
	Reapplies the next action in the edit history. More...

void	setControlsEnabled (bool enabled)
	Enables or disables the map camera and click controls. More...

void	setLevelVisible (unsigned int level, bool visible)
	Shows or hides the given level. More...

void	setLayerVisible (unsigned int level, unsigned int layer, bool visible)
	Shows or hides the given layer. More...

void	setRenderOverlay (RenderOverlay overlay, unsigned int level)
	Sets which overlay gets rendered on top of the map. More...

void	showGrid (bool show)
	Set whether or not to render a grid between tiles. More...

void	showSelection (const sf::IntRect &selection)
	Sets the tile selection to render. Set width or height to 0 to hide. Set width or height to negative values to show a single tile in blue (partial selection) More...

void	removeAllTiles (core::map::Tile::IdType id, bool isAnim)
	Removes all tiles that reference the given id in the tileset. This should be called before removing a tile from the tileset. More...

void	resize (unsigned int width, unsigned int height, bool modLeft, bool modTop)

void	setName (const std::string &name)
	Set the name of the map. More...

void	setPlaylist (const std::string &playlist)
	Sets the playlist of the map. More...

void	setWeather (core::map::Weather::Type weather)
	Set the weather in the map. More...

void	setOnEnterScript (const std::string &script)
	Set the OnEnter script. More...

const std::string &	getOnEnterScript () const
	Get the OnEnter script. More...

void	setOnExitScript (const std::string &script)
	Set the OnExit script. More...

const std::string &	getOnExitScript () const
	Get the OnExit script. More...

void	setAmbientLight (std::uint8_t lower, std::uint8_t upper, bool sunlight)
	Set the maps default ambient light settings. More...

void	appendLevel ()
	Creates a new level. More...

void	shiftLevel (unsigned int level, bool up)
	Shifts the given level up or down. More...

void	removeLevel (unsigned int level)
	Removes the given level. More...

void	appendBottomLayer (unsigned int level)
	Creates a new (empty) bottom layer. More...

void	appendYsortLayer (unsigned int level)
	Creates a new (empty) y-sort layer. More...

void	appendTopLayer (unsigned int level)
	Creates a new (empty) top layer. More...

void	shiftLayer (unsigned int level, unsigned int layer, bool up)
	Shifts a layer up or down in the render order. This will also move layers between bottom, y-sort, and top buckets. More...

void	removeLayer (unsigned int level, unsigned int layer)
	Deletes the given layer. More...

void	setTile (unsigned int level, unsigned int layer, const sf::Vector2i &position, core::map::Tile::IdType id, bool isAnim)
	Sets a single tile. More...

void	setTileArea (unsigned int level, unsigned int layer, const sf::IntRect &area, core::map::Tile::IdType id, bool isAnim)
	Sets a range of tiles to a given value. Tries to avoid overcrowding for large tiles. More...

void	fillTile (unsigned int level, unsigned int layer, const sf::Vector2i &position, core::map::Tile::IdType id, bool isAnim)
	Performs a bucket fill of tiles starting from the given position. More...

void	setCollision (unsigned int level, const sf::Vector2i &position, core::map::Collision id)
	Sets a single collision tile. More...

void	setCollisionArea (unsigned int level, const sf::IntRect &area, core::map::Collision id)
	Sets a range of collision tiles to a single value. More...

void	fillCollision (unsigned int level, const sf::Vector2i &position, core::map::Collision id)
	Performs a bucket fill of collisions from the given starting position. More...

void	setCatch (unsigned int level, const sf::Vector2i &position, std::uint8_t id)
	Sets a single catch tile. More...

void	setCatchArea (unsigned int level, const sf::IntRect &area, std::uint8_t id)
	Sets a range of catch tiles to a single value. More...

void	fillCatch (unsigned int level, const sf::Vector2i &position, std::uint8_t id)
	Performs a bucket fill of catch tiles from the given position. More...

bool	spawnIdUnused (unsigned int id) const
	Tells whether or not the given id is in use. More...

void	addSpawn (unsigned int level, const sf::Vector2i &tile, unsigned int id, bl::tmap::Direction dir)
	Adds a new player spawn to the map. More...

void	rotateSpawn (unsigned int level, const sf::Vector2i &tile)
	Rotates a player spawn. More...

void	removeSpawn (unsigned int level, const sf::Vector2i &position)
	Removes the spawn at the given position. More...

void	addNpcSpawn (const core::map::CharacterSpawn &spawn)
	Adds a character spawn to the map. More...

const core::map::CharacterSpawn *	getNpcSpawn (unsigned int level, const sf::Vector2i &position) const
	Get the Npc Spawn at the given position, if any. More...

void	editNpcSpawn (const core::map::CharacterSpawn *orig, const core::map::CharacterSpawn &spawn)
	Edits an existing character spawn. More...

void	removeNpcSpawn (const core::map::CharacterSpawn *spawn)
	Removes a character spawn. More...

std::pair< core::item::Id, bool >	getItem (unsigned int level, const sf::Vector2i &position)
	Returns spawn info the item at the given position, if any. More...

void	addOrEditItem (unsigned int level, const sf::Vector2i &position, core::item::Id item, bool visible)
	Spawns or modifies an item at the given position and level. More...

void	removeItem (unsigned int level, const sf::Vector2i &position)
	Removes the item from the given position if one is present. More...

void	setLight (const sf::Vector2i &positionPixels, unsigned int radius)
	Spawn or modify the light near the given position to the new size. More...

void	removeLight (const sf::Vector2i &positionPixels)
	Removes the light near the given position if one is there. More...

void	createEvent (const core::map::Event &event)
	Creates a new map event. More...

const core::map::Event *	getEvent (const sf::Vector2i &position)
	Returns a pointer to an event that overlaps the given position. More...

void	editEvent (const core::map::Event *orig, const core::map::Event &event)
	Alters the value of the given event. More...

void	removeEvent (const core::map::Event *event)
	Deletes the given event. More...

void	addCatchRegion ()
	Adds a new catch region to the map. More...

const std::vector< core::map::CatchRegion > &	catchRegions () const
	Returns a reference to all catch regions. More...

void	editCatchRegion (std::uint8_t index, const core::map::CatchRegion &zone)
	Modifies the catch region at the given index. More...

void	removeCatchRegion (std::uint8_t index)
	Removes the catch region at the given index. More...

void	addTown ()
	Adds a town. More...

void	editTown (std::uint8_t i, const core::map::Town &town)
	Modifies an existing town. More...

void	removeTown (std::uint8_t i)
	Removes a town. More...

void	setTownTile (const sf::Vector2i &position, std::uint8_t id)
	Sets the town tile at the given position. More...

void	setTownTileArea (const sf::IntRect &area, std::uint8_t id)
	Sets a region of town tiles to the given town. More...

void	fillTownTiles (const sf::Vector2i &position, std::uint8_t id)
	Performs a bucket fill of town tiles from the given position. More...

void	setLevelTile (const sf::Vector2i &position, core::map::LevelTransition lt)
	Sets the given level tile. More...

void	setLevelTileArea (const sf::IntRect &area, core::map::LevelTransition lt)
	Sets a selection of level tiles. More...

void	staticRender (const RenderMapWindow &params)
	Renders the map contents. More...

bool	loadDev (std::istream &input)
	Loads the map from the given file. Will try to determine if the extension or path need to be added in order to support how map names used to be entered. Loads the json format. More...

bool	loadProd (bl::serial::binary::InputStream &input)
	Loads the map from the given file. Will try to determine if the extension or path need to be added in order to support how map names used to be entered. Loads the binary format. More...

bool	save (const std::string &file)
	Saves the map to the given file. The path should be relative to the maps directory and include the .map extension. More...

bool	saveBundle (bl::serial::binary::OutputStream &output, bl::resource::bundle::FileHandlerContext &ctx) const
	Saves the data from this object to the given bundle and registers dependency files. More...

bool	enter (system::Systems &systems, std::uint16_t spawnId, const std::string &prevMap, const bl::tmap::Position &prevPlayerPos)
	Initializes runtime data structures and spawns entities into the game. Also runs the on-load script. More...

void	exit (system::Systems &systems, const std::string &newMap)
	Removes spawned entities and runs the on-unload script. More...

void	setupCamera (system::Systems &systems)
	Configures the game camera for the player in the map. More...

const std::string &	name () const
	Returns the name of the map. More...

Weather &	weatherSystem ()
	Returns a reference to the weather system in this map. More...

LightingSystem &	lightingSystem ()
	Returns a reference to the lighting system in this map. More...

const sf::Vector2i &	sizeTiles () const
	Returns the size of the map in tiles. More...

sf::Vector2f	sizePixels () const
	Returns the size of the map in pixels. More...

std::uint8_t	levelCount () const
	Returns the number of levels in the map. More...

bool	contains (const bl::tmap::Position &position) const
	Returns whether or not the map contains the given position. More...

bl::tmap::Position	adjacentTile (const bl::tmap::Position &pos, bl::tmap::Direction dir) const
	Returns the adjacent position to the given position when moving in the given direction. Does not take into account collisions. More...

bool	movePossible (const bl::tmap::Position &position, bl::tmap::Direction dir) const
	Returns whether or not a particular movement is possible. Does not take into account entities blocking the way. More...

bool	isLedgeHop (const bl::tmap::Position &position, bl::tmap::Direction dir) const
	Test whether the given movement will be a ledge hop or not. More...

virtual void	observe (const event::EntityMoved &moveEvent) override
	Event listener for moving entities. Used to trigger map events. More...

bool	interact (bl::ecs::Entity interactor, const bl::tmap::Position &interactPos)
	Lets entities interact with the map itself. This is called by the Interaction system. More...

const CatchRegion *	getCatchRegion (const bl::tmap::Position &position) const
	Returns the catch region at the given position if the position is on a catch tile. More...

bool	canFlyFromHere () const
	Returns whether or not the player can fly from this map. More...

const bl::tmap::Position *	getSpawnPosition (unsigned int spawnId) const
	Returns the position of the given player spawn, or nullptr if not found. More...

const std::string &	getLocationName (const bl::tmap::Position &pos) const
	Returns the name of the town or route at the given position. More...

float	getDepthForPosition (unsigned int level, unsigned int y, int layer=-1) const
	Computes the depth to use at the given y position, taking into account the map size, layer count, and layer types. More...

float	getMinDepth () const
	Returns the maximum depth possible for this map. Maximum is always 0.f. Minimum is negative, so 'higher' positions will have lower depths than deeper positions. More...

bl::rc::SceneRef	getScene ()
	Returns the scene for this map. More...

bl::rc::lgt::Scene2DLighting &	getSceneLighting ()
	Returns the scene lighting for this map. Only valid after enter() is called. More...

void	setupEntityPosition (bl::ecs::Entity entity)
	Performs the final setup of the position components for the given entity. Must already have a bl::tmap::Position and bl::com::Transform2D component. More...

Static Public Member Functions
static Ptr	create (const PositionCb &clickCb, const PositionCb &moveCb, const ActionCb &actionCb, const ActionCb &syncCb, core::system::Systems &systems)
	Creates a new EditMap. More...

static std::string	getMapFile (const std::string &partialFile)
	Returns the full path to the map file from the given partial file. Accounts for missing extension. More...

static const std::vector< Town > &	FlyMapTowns ()
	Returns the set of towns that can be flown to. More...

Protected Member Functions
void	clear ()

void	finishLoad ()

void	triggerAnimation (const bl::tmap::Position &position)

Town *	getTown (const glm::i32vec2 &pos)

void	enterTown (Town *town)

void	prepareRender ()

void	cleanupRender ()

void	setupLevel (unsigned int level)

void	setupLayer (unsigned int level, unsigned int layer)

void	setupTile (unsigned int level, unsigned int layer, const sf::Vector2u &pos)

Static Protected Member Functions
static void	loadFlymapTowns ()

Protected Attributes
std::string	nameField

std::string	loadScriptField

std::string	unloadScriptField

std::string	playlistField

Weather::Type	weatherField

std::vector< LayerSet >	levels

std::string	tilesetField

std::unordered_map< std::uint16_t, Spawn >	spawns

std::vector< CharacterSpawn >	characterField

std::vector< Item >	itemsField

std::vector< Event >	eventsField

LightingSystem	lighting

std::vector< CatchRegion >	catchRegionsField

bl::ctr::Vector2D< LevelTransition >	transitionField

std::vector< Town >	towns

bl::ctr::Vector2D< std::uint8_t >	townTiles

system::Systems *	systems

Town	defaultTown

Town *	currentTown

sf::Vector2i	size

bl::resource::Ref< Tileset >	tileset

Weather	weather

std::unique_ptr< bl::script::Script >	onEnterScript

std::unique_ptr< bl::script::Script >	onExitScript

bl::ctr::Grid< const Event * >	eventRegions

bool	isWorldMap

bl::audio::AudioSystem::Handle	playlistHandle

bool	activated

bl::rc::SceneRef	scene

std::list< RenderLevel >	renderLevels

Static Protected Attributes
static std::vector< Town >	flymapTowns

Friends
class	page::Map

class	page::Towns

class	rdr::EditMapComponent

Detailed Description

Wrapper over the core::Map class that is directly usable in a bl::gui::GUI.

Definition at line 26 of file EditMap.hpp.

Member Typedef Documentation

◆ ActionCb

using editor::component::EditMap::ActionCb = std::function<void()>

Called on various event types.

Definition at line 37 of file EditMap.hpp.

◆ PositionCb

using editor::component::EditMap::PositionCb = std::function<void(const sf::Vector2f& pixels, const sf::Vector2i& tiles)>

Called when the map is clicked.

Definition at line 34 of file EditMap.hpp.

◆ Ptr

typedef std::shared_ptr<EditMap> editor::component::EditMap::Ptr

Pointer to an EditMap.

Definition at line 31 of file EditMap.hpp.

Member Enumeration Documentation

◆ RenderOverlay

enum editor::component::EditMap::RenderOverlay

strong

Optional render overlays depending on editor state.

Enumerator
None	No extra overlay.
Collisions	Renders collisions for the current level.
CatchTiles	Renders catch tiles for the current level.
Towns	Renders colored tiles to indicate towns/routes.
Events	Renders events in the map.
Spawns	Renders spawns in the map.
LevelTransitions	Renders level transitions.

Definition at line 42 of file EditMap.hpp.

Constructor & Destructor Documentation

◆ ~EditMap()

editor::component::EditMap::~EditMap ( )

virtual

Destroy the Edit Map object.

Definition at line 119 of file EditMap.cpp.

Member Function Documentation

◆ addCatchRegion()

void editor::component::EditMap::addCatchRegion ( )

Adds a new catch region to the map.

Definition at line 849 of file EditMap.cpp.

◆ addNpcSpawn()

void editor::component::EditMap::addNpcSpawn ( const core::map::CharacterSpawn & spawn )

Adds a character spawn to the map.

Parameters

spawn The spawn to add

Definition at line 665 of file EditMap.cpp.

◆ addOrEditItem()

void editor::component::EditMap::addOrEditItem	(	unsigned int	level,
		const sf::Vector2i &	position,
		core::item::Id	item,
		bool	visible
	)

Spawns or modifies an item at the given position and level.

Parameters

level	The level for the item to be on
position	The position to spawn at
item	The item to spawn
visible	True if the item should be visible, false for hidden

Definition at line 798 of file EditMap.cpp.

◆ addSpawn()

void editor::component::EditMap::addSpawn	(	unsigned int	level,
		const sf::Vector2i &	tile,
		unsigned int	id,
		bl::tmap::Direction	dir
	)

Adds a new player spawn to the map.

Parameters

level	The level to place the spawn on
tile	The position the spawn is at
id	The id of the spawn
dir	The direction of the spawn

Definition at line 638 of file EditMap.cpp.

◆ addTown()

void editor::component::EditMap::addTown ( )

Adds a town.

Definition at line 867 of file EditMap.cpp.

◆ adjacentTile()

bl::tmap::Position core::map::Map::adjacentTile	(	const bl::tmap::Position &	pos,
		bl::tmap::Direction	dir
	)		const

inherited

Returns the adjacent position to the given position when moving in the given direction. Does not take into account collisions.

Parameters

pos	The position that is being moved from
dir	The direction that the movement is going

Returns: bl::tmap::Position The adjacent tile with level transition if any

Definition at line 276 of file Map.cpp.

◆ appendBottomLayer()

void editor::component::EditMap::appendBottomLayer ( unsigned int level )

Creates a new (empty) bottom layer.

Parameters

level The level to create the layer on

Definition at line 598 of file EditMap.cpp.

◆ appendLevel()

void editor::component::EditMap::appendLevel ( )

Creates a new level.

Definition at line 622 of file EditMap.cpp.

◆ appendTopLayer()

void editor::component::EditMap::appendTopLayer ( unsigned int level )

Creates a new (empty) top layer.

Parameters

level The level to create the layer on

Definition at line 606 of file EditMap.cpp.

◆ appendYsortLayer()

void editor::component::EditMap::appendYsortLayer ( unsigned int level )

Creates a new (empty) y-sort layer.

Parameters

level The level to create the layer on

Definition at line 602 of file EditMap.cpp.

◆ canFlyFromHere()

bool core::map::Map::canFlyFromHere ( ) const

inherited

Returns whether or not the player can fly from this map.

Definition at line 603 of file Map.cpp.

◆ catchRegions()

const std::vector< core::map::CatchRegion > & editor::component::EditMap::catchRegions ( ) const

Returns a reference to all catch regions.

Definition at line 851 of file EditMap.cpp.

◆ cleanupRender()

void core::map::Map::cleanupRender ( )

protectedinherited

Definition at line 779 of file Map.cpp.

◆ clear()

void core::map::Map::clear ( )

protectedinherited

Definition at line 523 of file Map.cpp.

◆ contains()

bool core::map::Map::contains ( const bl::tmap::Position & position ) const

inherited

Returns whether or not the map contains the given position.

Parameters

position The position to check for

Returns: True if the position is within the map, false if not

Definition at line 271 of file Map.cpp.

◆ create()

EditMap::Ptr editor::component::EditMap::create	(	const PositionCb &	clickCb,
		const PositionCb &	moveCb,
		const ActionCb &	actionCb,
		const ActionCb &	syncCb,
		core::system::Systems &	systems
	)

static

Creates a new EditMap.

Parameters

clickCb	Called when the map is clicked
moveCb	Called when the mouse is moved over a tile
actionCb	Called when editor actions are performed
syncCb	Called when map data has changed and the GUI should update
systems	The primary systems object

Returns: Ptr The new EditMap

Definition at line 55 of file EditMap.cpp.

◆ createEvent()

void editor::component::EditMap::createEvent ( const core::map::Event & event )

Creates a new map event.

Parameters

event The event to create

Definition at line 774 of file EditMap.cpp.

◆ currentFile()

const std::string & editor::component::EditMap::currentFile ( ) const

Returns the current file the map is saving to.

Definition at line 143 of file EditMap.cpp.

◆ editCatchRegion()

void editor::component::EditMap::editCatchRegion	(	std::uint8_t	index,
		const core::map::CatchRegion &	zone
	)

Modifies the catch region at the given index.

Parameters

index	The index to modify
zone	The new value

Definition at line 855 of file EditMap.cpp.

◆ editEvent()

void editor::component::EditMap::editEvent	(	const core::map::Event *	orig,
		const core::map::Event &	event
	)

Alters the value of the given event.

Parameters

orig	Pointer to the event to update
event	New value to set

Definition at line 786 of file EditMap.cpp.

◆ editNpcSpawn()

void editor::component::EditMap::editNpcSpawn	(	const core::map::CharacterSpawn *	orig,
		const core::map::CharacterSpawn &	spawn
	)

Edits an existing character spawn.

Parameters

orig	The address of the existing spawn
spawn	The new spawn value

Definition at line 680 of file EditMap.cpp.

◆ editorLoad()

bool editor::component::EditMap::editorLoad ( const std::string & filename )

Loads the map contents from the given file.

Parameters

filename The map file to load from

Returns: True if loaded without error, false on error

Definition at line 126 of file EditMap.cpp.

◆ editorSave()

bool editor::component::EditMap::editorSave ( )

Saves the map to the file it was loaded from or created with.

Returns: True on success, false on error

Definition at line 135 of file EditMap.cpp.

◆ editTown()

void editor::component::EditMap::editTown	(	std::uint8_t	i,
		const core::map::Town &	town
	)

Modifies an existing town.

Parameters

i	Index of the town to modify
town	The new town value

Definition at line 869 of file EditMap.cpp.

◆ enter()

bool core::map::Map::enter	(	system::Systems &	systems,
		std::uint16_t	spawnId,
		const std::string &	prevMap,
		const bl::tmap::Position &	prevPlayerPos
	)

inherited

Initializes runtime data structures and spawns entities into the game. Also runs the on-load script.

Parameters

systems	The primary game systems
spawnId	The spawn to place the player at
prevMap	The name of the map coming from
prevPlayerPos	Used to spawn the player when coming back from a map or loading save

Returns: True on success, false on error

Definition at line 32 of file Map.cpp.

◆ enterTown()

void core::map::Map::enterTown ( Town * town )

protectedinherited

Definition at line 549 of file Map.cpp.

◆ exit()

void core::map::Map::exit	(	system::Systems &	systems,
		const std::string &	newMap
	)

inherited

Removes spawned entities and runs the on-unload script.

Parameters

systems	The primary game systems
newMap	The name of the map going to

Definition at line 136 of file Map.cpp.

◆ fillCatch()

void editor::component::EditMap::fillCatch	(	unsigned int	level,
		const sf::Vector2i &	position,
		std::uint8_t	id
	)

Performs a bucket fill of catch tiles from the given position.

Parameters

level	The level to fill
position	The position to fill from
id	The id to fill with

Definition at line 594 of file EditMap.cpp.

◆ fillCollision()

void editor::component::EditMap::fillCollision	(	unsigned int	level,
		const sf::Vector2i &	position,
		core::map::Collision	id
	)

Performs a bucket fill of collisions from the given starting position.

Parameters

level	The level to fill on
position	The position to fill from
id	The collision to fill with

Definition at line 582 of file EditMap.cpp.

◆ fillTile()

void editor::component::EditMap::fillTile	(	unsigned int	level,
		unsigned int	layer,
		const sf::Vector2i &	position,
		core::map::Tile::IdType	id,
		bool	isAnim
	)

Performs a bucket fill of tiles starting from the given position.

Parameters

level	The level to fill on
layer	The layer to fill on
position	The position to fill from
id	The tile to fill with
isAnim	True to fill with animations, false with sprites

Definition at line 568 of file EditMap.cpp.

◆ fillTownTiles()

void editor::component::EditMap::fillTownTiles	(	const sf::Vector2i &	position,
		std::uint8_t	id
	)

Performs a bucket fill of town tiles from the given position.

Parameters

position	The position to fill from
id	The town to fill with

Definition at line 883 of file EditMap.cpp.

◆ finishLoad()

void core::map::Map::finishLoad ( )

protectedinherited

Definition at line 215 of file Map.cpp.

◆ FlyMapTowns()

const std::vector< Town > & core::map::Map::FlyMapTowns ( )

staticinherited

Returns the set of towns that can be flown to.

Definition at line 587 of file Map.cpp.

◆ getCatchRegion()

const CatchRegion * core::map::Map::getCatchRegion ( const bl::tmap::Position & position ) const

inherited

Returns the catch region at the given position if the position is on a catch tile.

Parameters

position The position to search

Returns: CatchRegion* The catch region if on a catch tile and a region is there, or nullptr

Definition at line 567 of file Map.cpp.

◆ getDepthForPosition()

float core::map::Map::getDepthForPosition	(	unsigned int	level,
		unsigned int	y,
		int	layer = `-1`
	)		const

inherited

Computes the depth to use at the given y position, taking into account the map size, layer count, and layer types.

Parameters

level	The level of the position to compute the depth for
y	The y coordinate of the position to compute the depth for
layer	The index of the layer to compute the depth for. -1 is for entities

Returns: The depth to use for the given position, both for tiles and entities

Definition at line 741 of file Map.cpp.

◆ getEvent()

const core::map::Event * editor::component::EditMap::getEvent ( const sf::Vector2i & position )

Returns a pointer to an event that overlaps the given position.

Parameters

position The position to search

Returns: const core::map::Event* Pointer to event or nullptr if none overlap

Definition at line 778 of file EditMap.cpp.

◆ getItem()

std::pair< core::item::Id, bool > editor::component::EditMap::getItem	(	unsigned int	level,
		const sf::Vector2i &	position
	)

Returns spawn info the item at the given position, if any.

Parameters

level	The level to search
position	The position to check

Returns: std::pair<core::item::Id, bool> The item id and hidden state. Unknown if none

Definition at line 815 of file EditMap.cpp.

◆ getLocationName()

const std::string & core::map::Map::getLocationName ( const bl::tmap::Position & pos ) const

inherited

Returns the name of the town or route at the given position.

Parameters

pos	The position to check for

Returns: const std::string& The name of the town, route, or map of the position

Definition at line 610 of file Map.cpp.

◆ getMapFile()

std::string core::map::Map::getMapFile ( const std::string & partialFile )

staticinherited

Returns the full path to the map file from the given partial file. Accounts for missing extension.

Parameters

partialFile

Returns: std::string

Definition at line 191 of file Map.cpp.

◆ getMinDepth()

float core::map::Map::getMinDepth ( ) const

inherited

Returns the maximum depth possible for this map. Maximum is always 0.f. Minimum is negative, so 'higher' positions will have lower depths than deeper positions.

Definition at line 775 of file Map.cpp.

◆ getNpcSpawn()

const core::map::CharacterSpawn * editor::component::EditMap::getNpcSpawn	(	unsigned int	level,
		const sf::Vector2i &	position
	)		const

Get the Npc Spawn at the given position, if any.

Parameters

The	level the spawn is on
position	The position to get the spawn at

Returns: const core::map::CharacterSpawn* The spawn or nullptr if none

Definition at line 669 of file EditMap.cpp.

◆ getOnEnterScript()

const std::string & editor::component::EditMap::getOnEnterScript ( ) const

Get the OnEnter script.

Definition at line 628 of file EditMap.cpp.

◆ getOnExitScript()

const std::string & editor::component::EditMap::getOnExitScript ( ) const

Get the OnExit script.

Definition at line 634 of file EditMap.cpp.

◆ getScene()

bl::rc::SceneRef core::map::Map::getScene ( )

inlineinherited

Returns the scene for this map.

Definition at line 280 of file Map.hpp.

◆ getSceneLighting()

bl::rc::lgt::Scene2DLighting& core::map::Map::getSceneLighting ( )

inlineinherited

Returns the scene lighting for this map. Only valid after enter() is called.

Definition at line 285 of file Map.hpp.

◆ getSpawnPosition()

const bl::tmap::Position * core::map::Map::getSpawnPosition ( unsigned int spawnId ) const

inherited

Returns the position of the given player spawn, or nullptr if not found.

Parameters

spawnId Id of the spawn to get the position for

Returns: const bl::tmap::Position* Pointer to the position to spawn at. May be nullptr

Definition at line 605 of file Map.cpp.

◆ getTown()

Town * core::map::Map::getTown ( const glm::i32vec2 & pos )

protectedinherited

Definition at line 541 of file Map.cpp.

◆ interact()

bool core::map::Map::interact	(	bl::ecs::Entity	interactor,
		const bl::tmap::Position &	interactPos
	)

inherited

Lets entities interact with the map itself. This is called by the Interaction system.

Parameters

interactor	The entity doing the interact
interactPos	The position being interacted with

Definition at line 454 of file Map.cpp.

◆ isLedgeHop()

bool core::map::Map::isLedgeHop	(	const bl::tmap::Position &	position,
		bl::tmap::Direction	dir
	)		const

inherited

Test whether the given movement will be a ledge hop or not.

Parameters

position	The current position being moved away from
dir	The direction being moved in

Returns: True if the move is a ledge hop, false otherwise

Definition at line 378 of file Map.cpp.

◆ levelCount()

std::uint8_t core::map::Map::levelCount ( ) const

inherited

Returns the number of levels in the map.

Definition at line 180 of file Map.cpp.

◆ lightingSystem()

LightingSystem & core::map::Map::lightingSystem ( )

inherited

Returns a reference to the lighting system in this map.

Definition at line 184 of file Map.cpp.

◆ loadDev()

bool core::map::Map::loadDev ( std::istream & input )

inherited

Loads the map from the given file. Will try to determine if the extension or path need to be added in order to support how map names used to be entered. Loads the json format.

Parameters

input Stream to load the map from

Returns: True if the map was able to be loaded, false on error

Definition at line 203 of file Map.cpp.

◆ loadFlymapTowns()

void core::map::Map::loadFlymapTowns ( )

staticprotectedinherited

Definition at line 592 of file Map.cpp.

◆ loadProd()

bool core::map::Map::loadProd ( bl::serial::binary::InputStream & input )

inherited

Loads the map from the given file. Will try to determine if the extension or path need to be added in order to support how map names used to be entered. Loads the binary format.

Parameters

input Stream to load the map from

Returns: True if the map was able to be loaded, false on error

Definition at line 209 of file Map.cpp.

◆ movePossible()

bool core::map::Map::movePossible	(	const bl::tmap::Position &	position,
		bl::tmap::Direction	dir
	)		const

inherited

Returns whether or not a particular movement is possible. Does not take into account entities blocking the way.

Parameters

position	The position being moved from
dir	The direction to move in

Returns: True if the move is allowed, false if it is not

Definition at line 329 of file Map.cpp.

◆ name()

const std::string & core::map::Map::name ( ) const

inherited

Returns the name of the map.

Definition at line 171 of file Map.cpp.

◆ newMap()

void editor::component::EditMap::newMap	(	const std::string &	filename,
		const std::string &	name,
		const std::string &	tileset,
		unsigned int	width,
		unsigned int	height
	)

Clears the current map and creates a new map with the given parameters.

Parameters

filename	The file to save the map into
name	The name of the map
tileset	The tileset to use
width	The width of the map in tiles
height	The height of the map in tiles

Definition at line 145 of file EditMap.cpp.

◆ observe()

void core::map::Map::observe ( const event::EntityMoved & moveEvent )

overridevirtualinherited

Event listener for moving entities. Used to trigger map events.

Parameters

moveEvent The move event

Definition at line 385 of file Map.cpp.

◆ prepareRender()

void core::map::Map::prepareRender ( )

protectedinherited

Definition at line 614 of file Map.cpp.

◆ redo()

void editor::component::EditMap::redo ( )

Reapplies the next action in the edit history.

Definition at line 524 of file EditMap.cpp.

◆ redoDescription()

const char * editor::component::EditMap::redoDescription ( ) const

Returns the description of what action will be redone if redo is called.

Definition at line 532 of file EditMap.cpp.

◆ removeAllTiles()

void editor::component::EditMap::removeAllTiles	(	core::map::Tile::IdType	id,
		bool	isAnim
	)

Removes all tiles that reference the given id in the tileset. This should be called before removing a tile from the tileset.

Parameters

id	The id of the tile in the tileset
isAnim	True for an animation, false for a regular tile

Definition at line 392 of file EditMap.cpp.

◆ removeCatchRegion()

void editor::component::EditMap::removeCatchRegion ( std::uint8_t index )

Removes the catch region at the given index.

Parameters

index The catch region to remove

Definition at line 859 of file EditMap.cpp.

◆ removeEvent()

void editor::component::EditMap::removeEvent ( const core::map::Event * event )

Deletes the given event.

Parameters

event Pointer to the event to delete

Definition at line 792 of file EditMap.cpp.

◆ removeItem()

void editor::component::EditMap::removeItem	(	unsigned int	level,
		const sf::Vector2i &	position
	)

Removes the item from the given position if one is present.

Parameters

level	The level to search
position	The position to clear

Definition at line 824 of file EditMap.cpp.

◆ removeLayer()

void editor::component::EditMap::removeLayer	(	unsigned int	level,
		unsigned int	layer
	)

Deletes the given layer.

Parameters

level	The level the layer is on
layer	Index of the layer to remove

Definition at line 610 of file EditMap.cpp.

◆ removeLevel()

void editor::component::EditMap::removeLevel ( unsigned int level )

Removes the given level.

Parameters

level The level to remove

◆ removeLight()

void editor::component::EditMap::removeLight ( const sf::Vector2i & positionPixels )

Removes the light near the given position if one is there.

Parameters

positionPixels The position of the light to remove, in pixels

Definition at line 842 of file EditMap.cpp.

◆ removeNpcSpawn()

void editor::component::EditMap::removeNpcSpawn ( const core::map::CharacterSpawn * spawn )

Removes a character spawn.

Parameters

spawn The address of the spawn to remove

Definition at line 692 of file EditMap.cpp.

◆ removeSpawn()

void editor::component::EditMap::removeSpawn	(	unsigned int	level,
		const sf::Vector2i &	position
	)

Removes the spawn at the given position.

Parameters

level	The level the spawn is on
position	The position the spawn is at

Definition at line 654 of file EditMap.cpp.

◆ removeTown()

void editor::component::EditMap::removeTown ( std::uint8_t i )

Removes a town.

Parameters

i	Index of the town to remove

Definition at line 873 of file EditMap.cpp.

◆ resize()

void editor::component::EditMap::resize	(	unsigned int	width,
		unsigned int	height,
		bool	modLeft,
		bool	modTop
	)

◆ rotateSpawn()

void editor::component::EditMap::rotateSpawn	(	unsigned int	level,
		const sf::Vector2i &	tile
	)

Rotates a player spawn.

Parameters

level	The level the spawn is on
tile	The position the spawn is at

Definition at line 643 of file EditMap.cpp.

◆ save()

bool core::map::Map::save ( const std::string & file )

inherited

Saves the map to the given file. The path should be relative to the maps directory and include the .map extension.

Parameters

file	The file to save to

Returns: True if saved successfully, false on error

Definition at line 229 of file Map.cpp.

◆ saveBundle()

bool core::map::Map::saveBundle	(	bl::serial::binary::OutputStream &	output,
		bl::resource::bundle::FileHandlerContext &	ctx
	)		const

inherited

Saves the data from this object to the given bundle and registers dependency files.

Parameters

output	Stream to output to
ctx	Context to register dependencies with

Returns: True if serialization succeeded, false otherwise

Definition at line 246 of file Map.cpp.

◆ setAmbientLight()

void editor::component::EditMap::setAmbientLight	(	std::uint8_t	lower,
		std::uint8_t	upper,
		bool	sunlight
	)

Set the maps default ambient light settings.

Parameters

lower	The lower light level at night
upper	The upper light level during the day (or always if no sunlight)
sunlight	True to adjust between lower and upper for time of day, false for upper only

Definition at line 863 of file EditMap.cpp.

◆ setCatch()

void editor::component::EditMap::setCatch	(	unsigned int	level,
		const sf::Vector2i &	position,
		std::uint8_t	id
	)

Sets a single catch tile.

Parameters

level	The level to modify
position	The position of the catch to set
id	The new catch value

Definition at line 586 of file EditMap.cpp.

◆ setCatchArea()

void editor::component::EditMap::setCatchArea	(	unsigned int	level,
		const sf::IntRect &	area,
		std::uint8_t	id
	)

Sets a range of catch tiles to a single value.

Parameters

level	The level to modify
area	The region to set
id	The value to set all tiles to

Definition at line 590 of file EditMap.cpp.

◆ setCollision()

void editor::component::EditMap::setCollision	(	unsigned int	level,
		const sf::Vector2i &	position,
		core::map::Collision	id
	)

Sets a single collision tile.

Parameters

level	The level to modify
position	The position of the collision to set
id	The new collision value

Definition at line 573 of file EditMap.cpp.

◆ setCollisionArea()

void editor::component::EditMap::setCollisionArea	(	unsigned int	level,
		const sf::IntRect &	area,
		core::map::Collision	id
	)

Sets a range of collision tiles to a single value.

Parameters

level	The level to modify
area	The region to set
id	The value to set all tiles to

Definition at line 577 of file EditMap.cpp.

◆ setControlsEnabled()

void editor::component::EditMap::setControlsEnabled ( bool enabled )

Enables or disables the map camera and click controls.

Definition at line 292 of file EditMap.cpp.

◆ setLayerVisible()

void editor::component::EditMap::setLayerVisible	(	unsigned int	level,
		unsigned int	layer,
		bool	visible
	)

Shows or hides the given layer.

Parameters

level	The level the layer is on
layer	The index of the layer to show or hide
visible	True to render, false to hide

Definition at line 313 of file EditMap.cpp.

◆ setLevelTile()

void editor::component::EditMap::setLevelTile	(	const sf::Vector2i &	position,
		core::map::LevelTransition	lt
	)

Sets the given level tile.

Parameters

position	The position to set
lt	The level transition to occur on that tile

Definition at line 887 of file EditMap.cpp.

◆ setLevelTileArea()

void editor::component::EditMap::setLevelTileArea	(	const sf::IntRect &	area,
		core::map::LevelTransition	lt
	)

Sets a selection of level tiles.

Parameters

area	The region to update
lt	The level transition to populate the region with

Definition at line 891 of file EditMap.cpp.

◆ setLevelVisible()

void editor::component::EditMap::setLevelVisible	(	unsigned int	level,
		bool	visible
	)

Shows or hides the given level.

Parameters

level	The level to show or hide
visible	True to render, false to hide

Definition at line 297 of file EditMap.cpp.

◆ setLight()

void editor::component::EditMap::setLight	(	const sf::Vector2i &	positionPixels,
		unsigned int	radius
	)

Spawn or modify the light near the given position to the new size.

Parameters

positionPixels	The light radius in pixels
radius	The position of the light in pixels

Definition at line 835 of file EditMap.cpp.

◆ setName()

void editor::component::EditMap::setName ( const std::string & name )

Set the name of the map.

Parameters

name	The new name of the map

Definition at line 548 of file EditMap.cpp.

◆ setOnEnterScript()

void editor::component::EditMap::setOnEnterScript ( const std::string & script )

Set the OnEnter script.

Parameters

script The script to run when the map is entered

Definition at line 624 of file EditMap.cpp.

◆ setOnExitScript()

void editor::component::EditMap::setOnExitScript ( const std::string & script )

Set the OnExit script.

Parameters

script The script to run when the map is left

Definition at line 630 of file EditMap.cpp.

◆ setPlaylist()

void editor::component::EditMap::setPlaylist ( const std::string & playlist )

Sets the playlist of the map.

Parameters

playlist Path to the playlist to set

Definition at line 550 of file EditMap.cpp.

◆ setRenderOverlay()

void editor::component::EditMap::setRenderOverlay	(	RenderOverlay	overlay,
		unsigned int	level
	)

Sets which overlay gets rendered on top of the map.

Parameters

overlay	The overlay to render
level	Which level to source the overlay from

Definition at line 337 of file EditMap.cpp.

◆ setTile()

void editor::component::EditMap::setTile	(	unsigned int	level,
		unsigned int	layer,
		const sf::Vector2i &	position,
		core::map::Tile::IdType	id,
		bool	isAnim
	)

Sets a single tile.

Parameters

level	The level to modify
layer	The layer to modify
position	The position of the tile to modify
id	The new tile id
isAnim	True for animation, false for texture

Definition at line 558 of file EditMap.cpp.

◆ setTileArea()

void editor::component::EditMap::setTileArea	(	unsigned int	level,
		unsigned int	layer,
		const sf::IntRect &	area,
		core::map::Tile::IdType	id,
		bool	isAnim
	)

Sets a range of tiles to a given value. Tries to avoid overcrowding for large tiles.

Parameters

level	The level to modify
layer	The layer to modify
area	Region of tiles to set
id	New tile id
isAnim	True for animation, false for texture

Definition at line 563 of file EditMap.cpp.

◆ setTownTile()

void editor::component::EditMap::setTownTile	(	const sf::Vector2i &	position,
		std::uint8_t	id
	)

Sets the town tile at the given position.

Parameters

position	The position of the tile to set
id	The id of the town to set to

Definition at line 875 of file EditMap.cpp.

◆ setTownTileArea()

void editor::component::EditMap::setTownTileArea	(	const sf::IntRect &	area,
		std::uint8_t	id
	)

Sets a region of town tiles to the given town.

Parameters

area	The region to fill
id	The town to fill with

Definition at line 879 of file EditMap.cpp.

◆ setupCamera()

void core::map::Map::setupCamera ( system::Systems & systems )

inherited

Configures the game camera for the player in the map.

Parameters

systems The main game systems

Definition at line 160 of file Map.cpp.

◆ setupEntityPosition()

void core::map::Map::setupEntityPosition ( bl::ecs::Entity entity )

inherited

Performs the final setup of the position components for the given entity. Must already have a bl::tmap::Position and bl::com::Transform2D component.

Parameters

entity The entity to initialize

Definition at line 792 of file Map.cpp.

◆ setupLayer()

void core::map::Map::setupLayer	(	unsigned int	level,
		unsigned int	layer
	)

protectedinherited

Definition at line 635 of file Map.cpp.

◆ setupLevel()

void core::map::Map::setupLevel ( unsigned int level )

protectedinherited

Definition at line 624 of file Map.cpp.

◆ setupTile()

void core::map::Map::setupTile	(	unsigned int	level,
		unsigned int	layer,
		const sf::Vector2u &	pos
	)

protectedinherited

Definition at line 641 of file Map.cpp.

◆ setWeather()

void editor::component::EditMap::setWeather ( core::map::Weather::Type weather )

Set the weather in the map.

Parameters

weather The weather to do

Definition at line 554 of file EditMap.cpp.

◆ shiftLayer()

void editor::component::EditMap::shiftLayer	(	unsigned int	level,
		unsigned int	layer,
		bool	up
	)

Shifts a layer up or down in the render order. This will also move layers between bottom, y-sort, and top buckets.

Parameters

level	The level the layer is on
layer	The layer to shift
up	True to move up (render earlier), false to move down (render later)

Definition at line 614 of file EditMap.cpp.

◆ shiftLevel()

void editor::component::EditMap::shiftLevel	(	unsigned int	level,
		bool	up
	)

Shifts the given level up or down.

Parameters

level	The level to move
up	True for up, false for down

Definition at line 618 of file EditMap.cpp.

◆ showGrid()

void editor::component::EditMap::showGrid ( bool show )

Set whether or not to render a grid between tiles.

Definition at line 374 of file EditMap.cpp.

◆ showSelection()

void editor::component::EditMap::showSelection ( const sf::IntRect & selection )

Sets the tile selection to render. Set width or height to 0 to hide. Set width or height to negative values to show a single tile in blue (partial selection)

Parameters

selection The selection to render, in tiles

Definition at line 376 of file EditMap.cpp.

◆ sizePixels()

sf::Vector2f core::map::Map::sizePixels ( ) const

inherited

Returns the size of the map in pixels.

Definition at line 175 of file Map.cpp.

◆ sizeTiles()

const sf::Vector2i & core::map::Map::sizeTiles ( ) const

inherited

Returns the size of the map in tiles.

Definition at line 173 of file Map.cpp.

◆ spawnIdUnused()

bool editor::component::EditMap::spawnIdUnused ( unsigned int id ) const

Tells whether or not the given id is in use.

Parameters

id	The id to check

Returns: True if unused, false if used

Definition at line 636 of file EditMap.cpp.

◆ staticRender()

void editor::component::EditMap::staticRender ( const RenderMapWindow & params )

Renders the map contents.

Parameters

params Parameters for the rendering

Definition at line 705 of file EditMap.cpp.

◆ triggerAnimation()

void core::map::Map::triggerAnimation ( const bl::tmap::Position & position )

protectedinherited

Definition at line 439 of file Map.cpp.

◆ undo()

void editor::component::EditMap::undo ( )

Undoes the previous action in the edit history.

Definition at line 511 of file EditMap.cpp.

◆ undoDescription()

const char * editor::component::EditMap::undoDescription ( ) const

Returns the description of what action will be undone if undo is called.

Definition at line 519 of file EditMap.cpp.

◆ unsavedChanges()

bool editor::component::EditMap::unsavedChanges ( ) const

Returns whether or not the map has been updated since last being saved.

Definition at line 221 of file EditMap.cpp.

◆ weatherSystem()

Weather & core::map::Map::weatherSystem ( )

inherited

Returns a reference to the weather system in this map.

Definition at line 182 of file Map.cpp.

Friends And Related Function Documentation

◆ page::Map

friend class page::Map

friend

Definition at line 765 of file EditMap.hpp.

◆ page::Towns

friend class page::Towns

friend

Definition at line 766 of file EditMap.hpp.

◆ rdr::EditMapComponent

friend class rdr::EditMapComponent

friend

Definition at line 767 of file EditMap.hpp.

Member Data Documentation

◆ activated

bool core::map::Map::activated

protectedinherited

Definition at line 326 of file Map.hpp.

◆ catchRegionsField

std::vector<CatchRegion> core::map::Map::catchRegionsField

protectedinherited

Definition at line 310 of file Map.hpp.

◆ characterField

std::vector<CharacterSpawn> core::map::Map::characterField

protectedinherited

Definition at line 306 of file Map.hpp.

◆ currentTown

Town* core::map::Map::currentTown

protectedinherited

Definition at line 317 of file Map.hpp.

◆ defaultTown

Town core::map::Map::defaultTown

protectedinherited

Definition at line 316 of file Map.hpp.

◆ eventRegions

bl::ctr::Grid<const Event*> core::map::Map::eventRegions

protectedinherited

Definition at line 323 of file Map.hpp.

◆ eventsField

std::vector<Event> core::map::Map::eventsField

protectedinherited

Definition at line 308 of file Map.hpp.

◆ flymapTowns

std::vector< Town > core::map::Map::flymapTowns

staticprotectedinherited

Definition at line 343 of file Map.hpp.

◆ isWorldMap

bool core::map::Map::isWorldMap

protectedinherited

Definition at line 324 of file Map.hpp.

◆ itemsField

std::vector<Item> core::map::Map::itemsField

protectedinherited

Definition at line 307 of file Map.hpp.

◆ levels

std::vector<LayerSet> core::map::Map::levels

protectedinherited

Definition at line 303 of file Map.hpp.

◆ lighting

LightingSystem core::map::Map::lighting

protectedinherited

Definition at line 309 of file Map.hpp.

◆ loadScriptField

std::string core::map::Map::loadScriptField

protectedinherited

Definition at line 299 of file Map.hpp.

◆ nameField

std::string core::map::Map::nameField

protectedinherited

Definition at line 298 of file Map.hpp.

◆ onEnterScript

std::unique_ptr<bl::script::Script> core::map::Map::onEnterScript

protectedinherited

Definition at line 321 of file Map.hpp.

◆ onExitScript

std::unique_ptr<bl::script::Script> core::map::Map::onExitScript

protectedinherited

Definition at line 322 of file Map.hpp.

◆ playlistField

std::string core::map::Map::playlistField

protectedinherited

Definition at line 301 of file Map.hpp.

◆ playlistHandle

bl::audio::AudioSystem::Handle core::map::Map::playlistHandle

protectedinherited

Definition at line 325 of file Map.hpp.

◆ renderLevels

std::list<RenderLevel> core::map::Map::renderLevels

protectedinherited

Definition at line 329 of file Map.hpp.

◆ scene

bl::rc::SceneRef core::map::Map::scene

protectedinherited

Definition at line 328 of file Map.hpp.

◆ size

sf::Vector2i core::map::Map::size

protectedinherited

Definition at line 318 of file Map.hpp.

◆ spawns

std::unordered_map<std::uint16_t, Spawn> core::map::Map::spawns

protectedinherited

Definition at line 305 of file Map.hpp.

◆ systems

system::Systems* core::map::Map::systems

protectedinherited

Definition at line 315 of file Map.hpp.

◆ tileset

bl::resource::Ref<Tileset> core::map::Map::tileset

protectedinherited

Definition at line 319 of file Map.hpp.

◆ tilesetField

std::string core::map::Map::tilesetField

protectedinherited

Definition at line 304 of file Map.hpp.

◆ towns

std::vector<Town> core::map::Map::towns

protectedinherited

Definition at line 312 of file Map.hpp.

◆ townTiles

bl::ctr::Vector2D<std::uint8_t> core::map::Map::townTiles

protectedinherited

Definition at line 313 of file Map.hpp.

◆ transitionField

bl::ctr::Vector2D<LevelTransition> core::map::Map::transitionField

protectedinherited

Definition at line 311 of file Map.hpp.

◆ unloadScriptField

std::string core::map::Map::unloadScriptField

protectedinherited

Definition at line 300 of file Map.hpp.

◆ weather

Weather core::map::Map::weather

protectedinherited

Definition at line 320 of file Map.hpp.

◆ weatherField

Weather::Type core::map::Map::weatherField

protectedinherited

Definition at line 302 of file Map.hpp.

The documentation for this class was generated from the following files:

include/Editor/Components/EditMap.hpp
src/Editor/Components/EditMap.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ ActionCb

◆ PositionCb

◆ Ptr

Member Enumeration Documentation

◆ RenderOverlay

Constructor & Destructor Documentation

◆ ~EditMap()

Member Function Documentation

◆ addCatchRegion()

◆ addNpcSpawn()

◆ addOrEditItem()

◆ addSpawn()

◆ addTown()

◆ adjacentTile()

◆ appendBottomLayer()

◆ appendLevel()

◆ appendTopLayer()

◆ appendYsortLayer()

◆ canFlyFromHere()

◆ catchRegions()

◆ cleanupRender()

◆ clear()

◆ contains()

◆ create()

◆ createEvent()

◆ currentFile()

◆ editCatchRegion()

◆ editEvent()

◆ editNpcSpawn()

◆ editorLoad()

◆ editorSave()

◆ editTown()

◆ enter()

◆ enterTown()

◆ exit()

◆ fillCatch()

◆ fillCollision()

◆ fillTile()

◆ fillTownTiles()

◆ finishLoad()

◆ FlyMapTowns()

◆ getCatchRegion()

◆ getDepthForPosition()

◆ getEvent()

◆ getItem()

◆ getLocationName()

◆ getMapFile()

◆ getMinDepth()

◆ getNpcSpawn()

◆ getOnEnterScript()

◆ getOnExitScript()

◆ getScene()

◆ getSceneLighting()

◆ getSpawnPosition()

◆ getTown()

◆ interact()

◆ isLedgeHop()

◆ levelCount()

◆ lightingSystem()

◆ loadDev()

◆ loadFlymapTowns()

◆ loadProd()

◆ movePossible()

◆ name()

◆ newMap()

◆ observe()

◆ prepareRender()

◆ redo()

◆ redoDescription()
